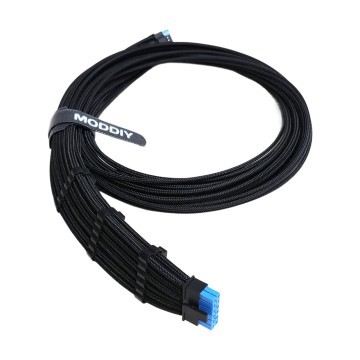

ATX 3.1 PCIe 5.1 H++ 12V-2X6 675W 12VHPWR 16 Pin Power Cable

NEW Premium Custom Tailor-Made ATX 3.1 PCIe 5.1 675W 12V-2X6 12VHPWR 16 Pin Power Cable for RTX 4090/4080/4070/4060/3090ti

Individually Sleeved Modular Cable, Built for the new PCIe 5.1 12V-2X6 (H++) Mini 12+4 pin GPU

Custom 12V-2X6 H++ 12VHPWR power cable for ATX 3.1 PCIe 5.1 power supply units (PSU)

The latest 12V-2x6 "H++" power connector recently made debut on the NVIDIA GeForce RTX 40 SUPER series GPUs and offers slightly higher power delivery versus the existing 12VHPWR "H+" connectors.

12V-2×6 "H++" Connector Offers Up To 675W GPU Power Delivery Versus 600W 12VHPWR "H+" Plug.

• H++ Power Connector = 12V-2x6 Design (675W Power Delivery)
• H+ Power Connector = 12VHPWR Design (600W Power Delivery)

The new 12V-2x6 power connector is fully compatible with the 12VHPWR connector. In essence, the new 3.1 connector appears almost identical, is fully interchangeable, and can perform all the functions of the old connector, but with enhancements in safety and efficiency. Specifically, the power pins have been extended by 0.25mm to enhance connection reliability by enlarging the contact surface area and reducing temperatures. Additionally, the signal pins have been shortened by 1.5mm to ensure users have an easier time fully plugging in the connector to achieve the safest, most reliable connection.

FAQ & Guidelines for 12VHPWR & 12V-2X6

Cable Type

• 12V-2X6 (H++) PCI-e Direct Cable (for plugging into PSU and GPU directly)

Cable Connector

• PSU Side: 8-Pin or 12V-2X6 16-Pin (depending on your PSU model)
• GPU Side: Straight or Angled 12V-2X6 H++ 16-Pin (suitable for any PCIe 5.0/5.1 GPUs with 12VHPWR or 12V-2X6 16-Pin port, e.g. RTX4080/RTX4090/RTX3090ti)

12V-2X6 Connector Types (examples)

• Straight
• Angle A (the latch is at the top)
• Angle B (the latch is at the bottom)

Cable Length

• 10cm to 100cm

Cable Style

• High-Density Single Sleeved
  This is the most popular and elegant style with individual high-density sleeving over each wire with the best protection while maintaining the cable softness and flexibility.
• Ultra-Soft Silicone Wire (no sleeving)
  This style gives you the most flexible cables in the world using premium ultra-soft silicone wires, most suitable for mini-PC, ITX, SFF builds with minimal spacing.
• Ultra-Soft Embossed Wire (no sleeving)
  This new soft-textured embossed cable, meticulous like woven texture, enhances the aesthetic. It offers both advantages of the texture of sleeving, and the softness of silicone wire.
• Premium Silver Wire (no sleeving)
  This style is the simplicity and elegant style using premium high-performance silver-plated wires with the best interference protection, most suitable for Audio Grade PC.

Cable Color

• Same price for any cable color(s). They are all 100% tailor-made for you!
• Available cable colors

Cable Combs (optional)

• Each cable comes with 3pcs of combs. If you want extra combs, please buy extras at ATX 3.1 PCIe 5.1 12V-2X6 16 Pin Single Wire Cable Closed Comb

PSU/GPU Model Compatibility

• Suitable for any PSU models. This is a custom tailor-made cable.
• Suitable for any PCIe 5.0/5.1 GPUs with 12VHPWR (H+) or 12V-2X6 (H++) 16-Pin port, e.g. RTX3090ti/RTX4090/RTX4080/RTX4070ti

Main Features

• Top-quality ultra-soft silicone wire
• High-density individually sleeving
• Premium newer extended connectors for high-current-system (HCS) rated 160°C
• Premium high-current single-seam 4-String terminals
