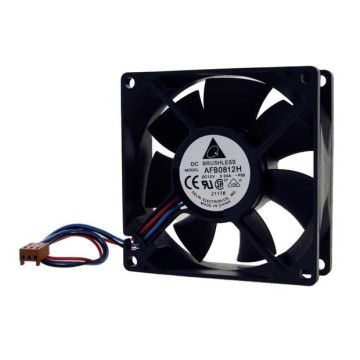

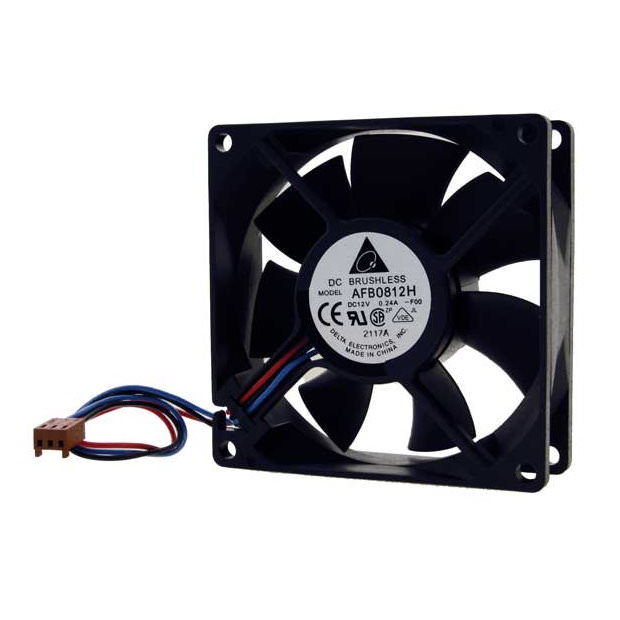

Delta 12VDC 0.24AMP 80x80x25mm 3 Pin FAN

SKU: AFB0812H  |  Brand / Compatible with: Delta
$9.14
Availability:
In Stock
(Usually ships within 24 hours)
Add-Ons:

Product Description

Technical/Catalog Information AFB0812H
Vendor Delta Product Groups
Category Fans, Thermal Management
Voltage - Rated 12VDC
Power (Watts) 1.92W
Bearing Type Ball
Size / Dimension Square - 80mm L x 80mm H x 25.4mm W
Air Flow 35.3 CFM (1.00m³/min)
Features -
Fan Type Tubeaxial
Noise 31 dB(A)
RPM 3000 RPM
Static Pressure 0.159 in H2O (39.6 Pa)
Weight 0.176 lb (79.83g)
Current Rating 160mA
Voltage Range 7 ~ 13.8VDC
Operating Temperature -
Life Expectancy -
Lead Free Status Lead Free
RoHS Status RoHS Compliant
Other Names AFB0812H
AFB0812H
603 1050 ND
6031050ND
603-1050
