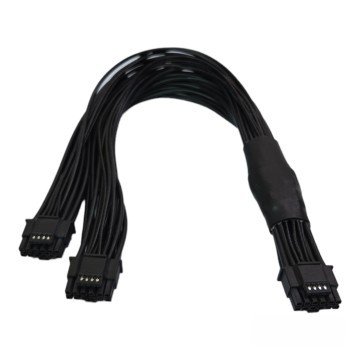

ATX 3.0 PCIe 5.0 12VHPWR to Dual 12VHPWR Native 16 Pin Power Cable

Premium custom tailor-made ATX 3.0/3.1 PCIe 5.0/5.1 12VHPWR 16-Pin (PSU) to Dual 12VHPWR 16-Pin (GPU) Native Power Cable

12VHPWR 1-to-2 Power Splitting Cable

A 12VHPWR port can provide up to 600W. For example, if you are using two Nvidia P40 cards (Max Power Consumption = 2 x 250W), you can use this 12VHPWR splitter cable to power two GPUs from one 12VHPWR port of the PSU. When using 12VHPWR splitter cable, you must ensure the total power consumption is within what a 12VHPWR port can provide.

Cable Type

• Modular Cable (for plugging into PSU and GPU directly)

Connector

• PSU: 1 x 12VHPWR Mini 12+4 Pin (16 Pin)
• GPU: 2 x 12VHPWR Mini 12+4 Pin (16 Pin)

Cable Length

• 10cm to 100cm

Cable Style

• High-Density Single Sleeved
  This is the most popular and elegant style with individual high-density sleeving over each wire with the best protection while maintaining the cable softness and flexibility.
• Ultra-Soft Silicone Wire (no sleeving)
  This style gives you the most flexible cables in the world using premium ultra-soft silicone wires, most suitable for mini-PC, ITX, SFF builds with minimal spacing.
• Ultra-Soft Embossed Wire (no sleeving)
  This new soft-textured embossed cable, meticulous like woven texture, enhances the aesthetic. It offers both advantages of the texture of sleeving, and the softness of silicone wire.
• Premium Silver Wire (no sleeving)
  This style is the simplicity and elegant style using premium high-performance silver-plated wires with the best interference protection, most suitable for Audio Grade PC.

Cable Color

• Same price for any cable color(s). They are all 100% tailor-made for you!
• Available cable colors

Cable Combs (optional)

• Each cable comes with 3pcs of combs (24-pin PCIe bridged). If you want extra combs, please buy extras at ATX 3.0 PCIe 5.0 12VHPWR 16 Pin Single Wire Cable Closed Comb

PSU Model

• Suitable for ATX 3.0/3.1 PSUs with 12VHPWR (12V-2X6) modular power port

Main Features

• Top-quality ultra-soft silicone wire
• High-density individually sleeving
• Premium newer extended connectors for high-current-system (HCS) rated 160°C
• Premium high-current Single-Split 4-Spring (Leaf-Spring) terminals
