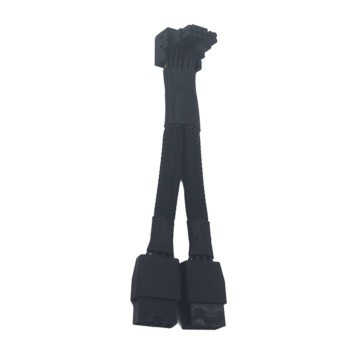

ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable

SKU: CO060  |  Brand / Compatible with: MODDIY
ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
  • ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
  • ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
  • ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
  • ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
  • ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
  • ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
  • ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
  • ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
  • ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
  • ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
  • ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
  • ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
$19.99 $29.99 SAVE $10.00
Availability:
In Stock
(Usually ships within 24 hours)
Shipping:
Free Shipping Worldwide
*Angle Type:

Product Description

This adapter is made with 12 dedicated high-current wires connected to top-quality single-seam terminals, using standard and proper power wire crimping method. There is no soldering, no bridging, no splitting, no sharing, no double-seam.

NEW Premium 90-Degree Angled ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Power Cable

This is a drop-in replacement for the Nvidia 12VHPWR 16-pin adapter cable with 90-degree angled 12VHPWR connector, which requires 20mm clearance only!

It is using premium single split/seam high-current terminals and 12 dedicated wires without sharing/bridging/soldering.

Sleeved Adapter Cable, Built for the new ATX 3.0 PCIe 5.0 12V HPWR Mini 12+4 pin PSUs

16Pin GPU Cable PCIe 5.0 12VHPWR Sleeved Modular Cables Male to Male PSU Cable Mini 12+4 pin Adapter 600W Power Supply

PCI-E 5.0 GPU Cable for Nvidia RTX 4080 4070 4060 3090ti

ATX 3.0 PCIe 5.0 Quadruple 8 Pin to 12VHPWR (3x8pin to 12VHPWR)

12vhpwr adapter

FAQ & Guidelines for 12VHPWR / ATX 3.0 / PCIE 5.0

Cable Type

  • Extension Adapter Cable (for converting regular PCIe power cables to the new 12VHPWR 16-pin port)

Connector

  • 2 x 8 Pin PCIE from PSU to 12VHPWR Mini 12+4 Pin (16 Pin)
    (suitable for any PCIe 5.0 GPUs with 12VHPWR 16-Pin port, e.g. RTX4090/4080/4070/4060)

12VHPWR Connector Angled Type (examples)

  • Type-A (the latch is at the top)
  • Type-B (the latch is at the bottom)

Cable Length

  • Around 15cm

Cable Style

  • High-Density Uni Sleeved
    This is the most popular and elegant style with high-density sleeving over the cables with the best protection while maintaining the cable softness and flexibility.

PSU Model

  • Suitable for any PCIe 5.0 GPUs with 12VHPWR 16-Pin port, e.g. RTX3090ti/RTX4080/RTX4070/RTX4060

Main Features

  • Top-quality 16AWG wire
  • High-density protective sleeving
  • Premium newer extended connectors for high-current-system (HCS) rated 160°C
  • Premium high-current single-seam 4-String terminals

Product Code

  • D8P-12VHPWR-90A

Why MODDIY?

Key Advantages MODDIY 12VHPWR Cables Other 12VHPWR Cables
5-Star Stellar Reputation ✓ ✕
Trusted by Professionals ✓ ✕
100% Satisfaction Guarantee ✓ ✕
NEW 12V-2X6 H++ Connector ✓ ✕
PREMIUM Branded Connectors ✓ ✕
PREMIUM 4-String Terminals ✓ ✕
PREMIUM High Quality Wires ✓ ✕
ALL PSU Brands and Models ✓ ✕
FREE Shipping Worldwide ✓ ✕
FAST Turnaround Time ✓ ✕

Keywords: 4070 ti 12vhpwr adapter, 90 degree angle 12VHPWR power adapter, 12VHPWR Angled Adapter, 12VHPWR 90 Degree Angled Adapter, 4090 adapter, rtx 4090 adapter, 4090 power adapter, rtx 4090 power adapter, ATX 3.0 PCIe 5.0 600W 2 x 8 Pin to 12VHPWR 16 Pin Angled Adapter Cable
